Configuring OKV automation using REST APIs

 This post will go through the process of creating a few simple scripts to automate OKV installation using the REST API capability of OKV.

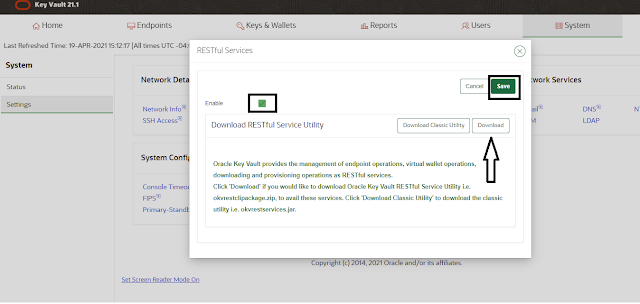

This bring up the window below.

 There are three things you want to do from this window.

1. Click on the "Enable" box to enable RESTful services
2. Download the okvrestcliepackage.zip which are the client utilities.
3. Save this setting to enable RESTful services.

Now that we have this file, we need to download it our client and start creating the scripts to automate this process.

I downloaded the zip file to my DB host to configure it. I unzipped it in /home/oracle/okv/rest

NOTE: you can also download it directly from the OKV hosts

wget --no-check-certificate https://ip_address:5695/okvrestclipackage.zip curl -k https://ip_address:5695/okvrestclipackage.zip -o okvrestclipackage.zip curl -O -k https://ip_address:5695/okvrestclipackage.zip

Copy code snippet

Step #2 unzip and configure the client tool

I unzipped the client tool into my home directory on a DB server so I can put together the automation scripts. In my case I unzipped it into /home/oracle/okv/rest. This creates 3 sub directories. I am going to format the output using this command.

find . | sed -e "s/[^-][^\/]*\// |/g" -e "s/|\([^ ]\)/|-\1/"

Below is what the output looks like

.
 |-lib
 | |-okvrestcli.jar
 |-bin
 | |-okv.bat
 | |-okv
 |-conf
 | |-okvrestcli.ini
 | |-okvrestcli_logging.properties

Step #3 - Set the environment for the CLI

In order to configure OKV, I am going to need some variables set in my environment. I can do this manually, but in my case I decided to create a "setenv.sh" script that will set the variables and add the OKV script to my path to be executed.  The 2 main variables I will be using are

OKV_RESTCLI_HOME - Location of the scripts that I am going to be installing. If I source the setenv.sh script, it will set the home to this location.

OKV_RESTCLI_CONFIG - Name of the configuration file that contains the rest CLI configuration.

###Ensure that the setenv file is sourced from the current directory to properly set variables if [ "${BASH_SOURCE[0]}" != "${0}" ] then echo "" else echo "" echo "the setenv.sh file must be sourced with \". ./setenv.sh \"" exit 0 fi FILE=`pwd`/setenv.sh if [ -f "$FILE" ] then echo "" else echo "" echo "source this from RESTful install directory" return fi echo "create environment variables OKV_RESTCLI_HOME and OKC_RESTCLI_CONFIG " ## set variables export OKV_RESTCLI_HOME=`pwd` export OKV_RESTCLI_BIN=$OKV_RESTCLI_HOME/bin export OKV_RESTCLI_CONFIG=$OKV_RESTCLI_HOME/conf/okvrestcli.ini ##add the OKV script to the path echo "" echo "\$OKV_RESTCLI_HOME : $OKV_RESTCLI_HOME " echo "\$OKV_RESTCLI_CONFIG : $OKV_RESTCLI_CONFIG " echo "" echo "Adding \$OKV_RESTCLI_BIN to the \$PATH " echo "" if [[ "$PATH" =~ (^|:)"${OKV_RESTCLI_BIN}"(:|$) ]] then echo "" else PATH=${OKV_RESTCLI_BIN}:$PATH fi

Step #4 - Set initialization parameters in okvrestcli.ini file

Next, I am going to configure the initialization parameters. These are found in the okvrestcli.ini file.

You can see that the file contains a "[Default]" profile and a few other example profiles. We will start with the default profile. In this we are going to set a few of the properties.

LOG_PROPERTY - Location of the logging properties. Default location is ./conf directory.

SERVER - IP address (or DNS) of one or more OKV hosts

 OKV_CLIENT_CONFIG - location of the config file. Default location is ./conf directory

USER - OKV user that has authority to administer endpoints an wallets.

PASSWORD - Password for the user, or location of wallet containing the password. I am NOT going to use this as I am going to use a wallet file.

 CLIENT_WALLET - I am going to use a wallet to store the password, and this is the location of the wallet file. I will be creating the autologin wallet later.



Below is what my "[Default]" configuration file looks like after my changes. I am going to use the environmental variables I set in the setenv.sh script.

NOTE: I am choosing to store my password in wallet rather than clear text in the .ini file.

[Default]
log_property=$OKV_RESTCLI_HOME/conf/okvrestcli_logging.properties
server=10.0.0.150
okv_client_config=$OKV_RESTCLI_HOME/conf/okvclient.ora
user=bgrenn
client_wallet=$OKV_RESTCLI_HOME/conf

cd /home/oracle/okv/rest
. ./setenv.sh


create environment variables OKV_RESTCLI_HOME and OKC_RESTCLI_CONFIG

   $OKV_RESTCLI_HOME    :  /home/oracle/okv/rest
   $OKV_RESTCLI_CONFIG  :  /home/oracle/okv/rest/conf/okvrestcli.ini

   Adding $OKV_RESTCLI_BIN to the $PATH



okv admin client-wallet add --client-wallet $OKV_RESTCLI_HOME/conf --wallet-user bgrenn
Password: {my password}
{
"result" : "Success"
}

.
 |-lib
 | |-okvrestcli.jar
 |-bin
 | |-okv.bat
 | |-okv
 |-conf
 | |-okvrestcli_logging.properties
 | |-ewallet.p12.lck
 | |-ewallet.p12
 | |-cwallet.sso.lck
 | |-cwallet.sso
 | |-okvrestcli.ini
 |-setenv.sh
 |-run-me.sh
